The Roche C311 Analyzer is a popular tool in clinical labs. It helps labs test samples faster and more accurately. This article will guide you on how to install, use, and take care of the Roche C311 analyzer. If you’re new to this device or need help with daily use, this guide will help.
What Is the Roche C311 Analyzer?

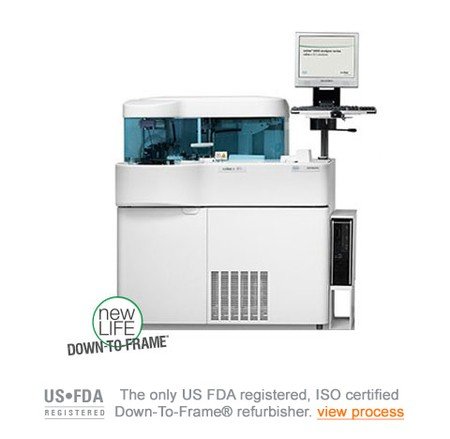

The C311 is a fully automated clinical chemistry analyzer. It is used to test blood and other body fluids. It helps doctors find problems in the body, like high sugar levels, liver issues, or kidney damage. Labs like the C311 because it works quickly and does many tests at once.
Key Features of the Roche C311
The C311 is packed with useful features:
- Fully automated system
- Handles up to 300 tests per hour
- Uses photometric and ion-selective methods
- Has 42 reagent positions
- Includes barcoded reagent management
- Easy-to-use touchscreen interface
- Compact size for medium-sized labs
This analyzer is made to be simple but powerful, making it perfect for busy labs.
Installation Tips for C311 Analyzer
Setting up the C311 correctly is important. Follow these tips to make sure your device works well from the start.
1. Choose the Right Space
Pick a clean, flat, and dry surface. The room should have:
- Stable temperature (18–32°C)
- Good airflow
- No direct sunlight
- Low dust and moisture
Make sure there is enough space around the machine for the operator to move.
2. Connect Power and Network
Plug the analyzer into a power source that meets the voltage needs listed in the manual. Connect the machine to the lab’s network system if data transfer is needed.
3. Reagent Loading
Place the reagents in the correct spots using the barcodes. The system will scan and load them automatically. Double-check the labels to avoid errors.
4. Water Supply and Waste Line
Connect the machine to a clean water supply and waste drainage. Use the pipes provided in the installation kit. This helps keep the analyzer running smoothly.
5. Software and Calibration Setup
Install the system software. Load any needed settings, like sample types or test methods. Perform the initial calibration as directed by Roche.
Daily Usage Guidelines
1. Powering On
Turn on the analyzer using the main switch. The screen will show the system status. Wait for it to complete startup.
2. Running Samples
Load the patient samples using the sample rack. Choose the test menu. The machine will start the test process.
3. Reviewing Results
The results will show on the screen and be saved in the system. You can print or send them to your lab network.
4. Cleaning After Use
At the end of the day, clean the analyzer as guided in the manual. Use only approved cleaning agents.
Routine Maintenance Tips
Keeping the C311 in good condition is very important. Here are some daily and weekly tasks.
Daily Tasks
- Check reagent levels
- Clean the probe and sensors
- Empty the waste container
- Wipe the outer surface
Weekly Tasks
- Deep clean the sample and reagent probes
- Run the maintenance cycle from the software
- Check the water filter and waste line
- Backup system data
Calibration and Quality Control
Calibration ensures accurate test results. Use the Roche calibration kits and follow these steps:
- Select the test to calibrate.
- Load the calibration fluid.
- Start the calibration from the touchscreen.
- Save the results after the process.
Also, perform quality control (QC) checks using standard QC samples. If results are outside limits, recheck or repeat the test.
Common Errors and How to Fix Them
1. Reagent Not Recognized
Solution: Re-scan the barcode or reload the reagent.
2. Sample Not Detected
Solution: Check if the sample is in the right position.
3. Printer Not Working
Solution: Make sure the printer cable is connected and paper is loaded.
4. System Freezes
Solution: Restart the analyzer or call technical support.
Safety Precautions
- Always wear lab gloves and coat when using the analyzer.
- Handle patient samples with care.
- Do not use expired reagents.
- Turn off the analyzer before cleaning.
Who Should Use the C311?
The C311 is ideal for:
- Mid-size clinical labs
- Hospitals with steady patient flow
- Labs needing multiple tests in one platform
- Medical centers upgrading from manual testing
Summary
The Roche C311 Analyzer is a smart choice for modern labs. It is easy to install, simple to use, and doesn’t require much upkeep. By following the steps above, you can keep your C311 working well for many years. Always read the user manual and follow Roche’s instructions to avoid mistakes.
